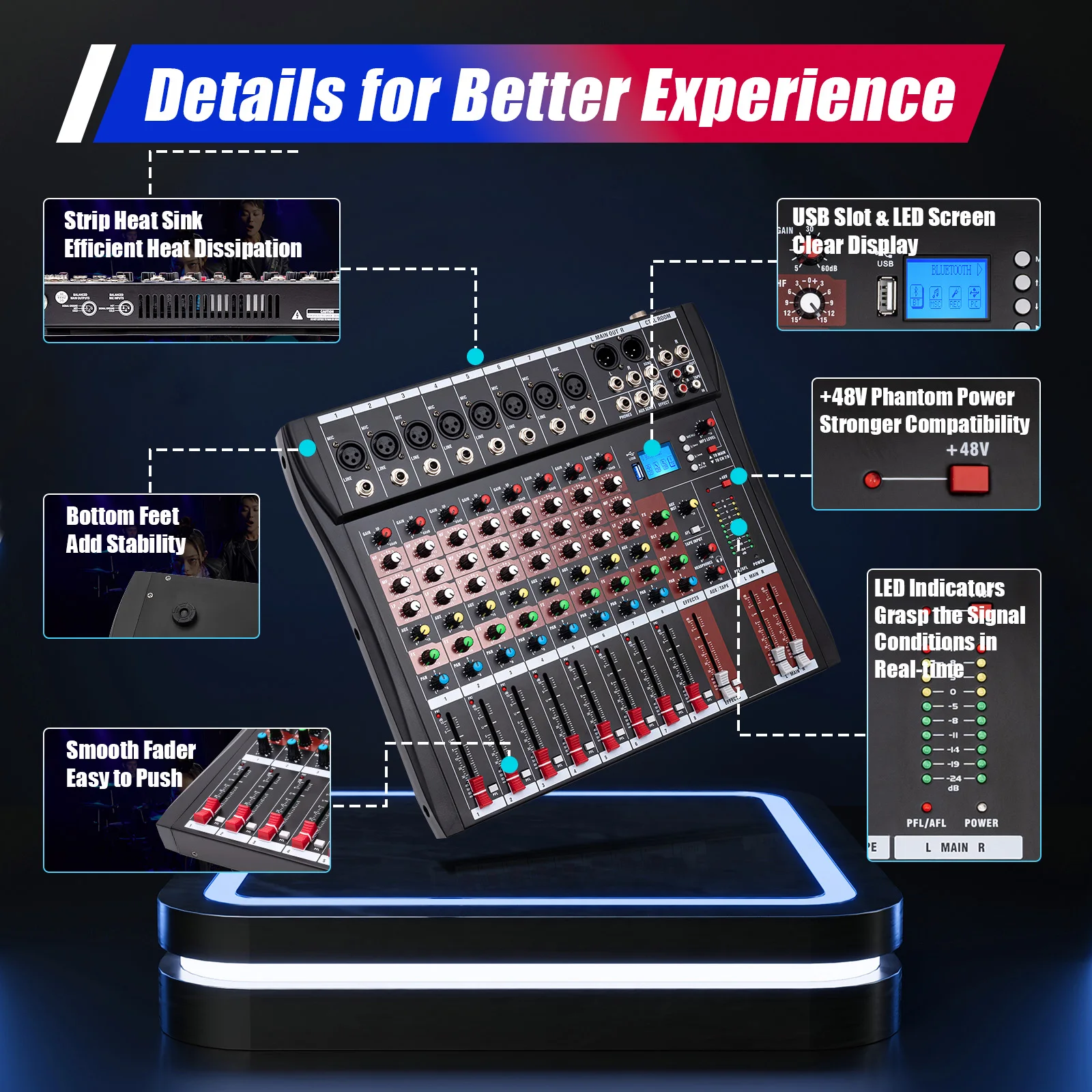

Details

Indicators: The left and right channels each have a 10-segment level peak indicator, allowing you to grasp the signal condition in real-time and accurately adjust to avoid overload on the amplifier and speakers caused by adverse effects.

USB Slot: The USB slot lets it connect to portable audio devices like USB drives or MP3s, so you can tune in anywhere, anytime!

LCD Display: There is an LCD screen on this product that displays system functions in real-time so you can easily adjust them.

Strip Heat Sink: The product comes with a strip heat sink on top to extend the life of the product.

Single-touch Power Switch: The product is equipped with a one-touch power switch, which is very convenient to turn on/off the power with just one touch.

Smooth Fader: The fader is made of selected high-quality damping material, smooth and easy to push and the concave convex design is for slip resistance.

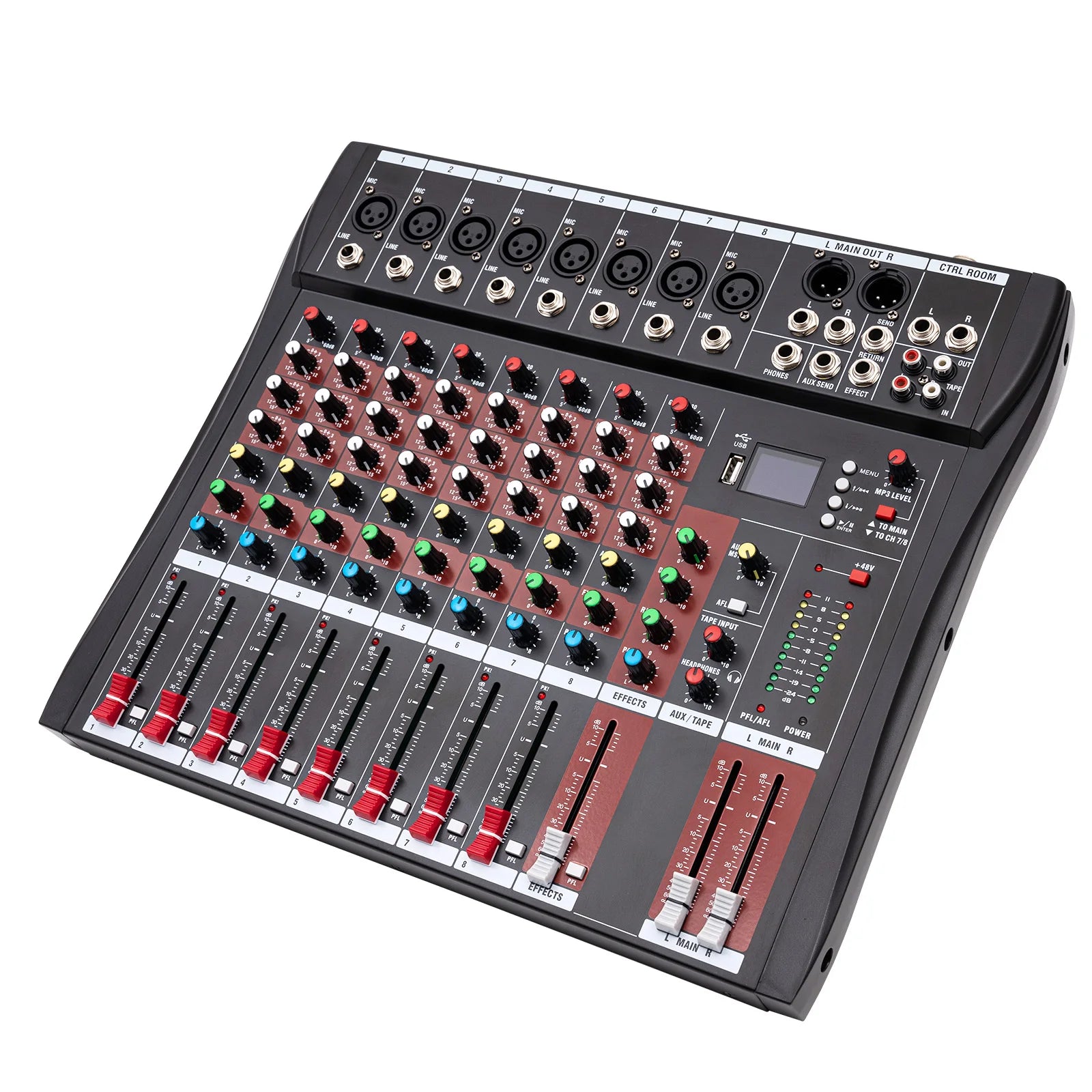

8-Channel EU Specification

Material: ABS
Color: Black
Number of Channels: 8
Plug: EU Standard
Power Source: Corded Electric

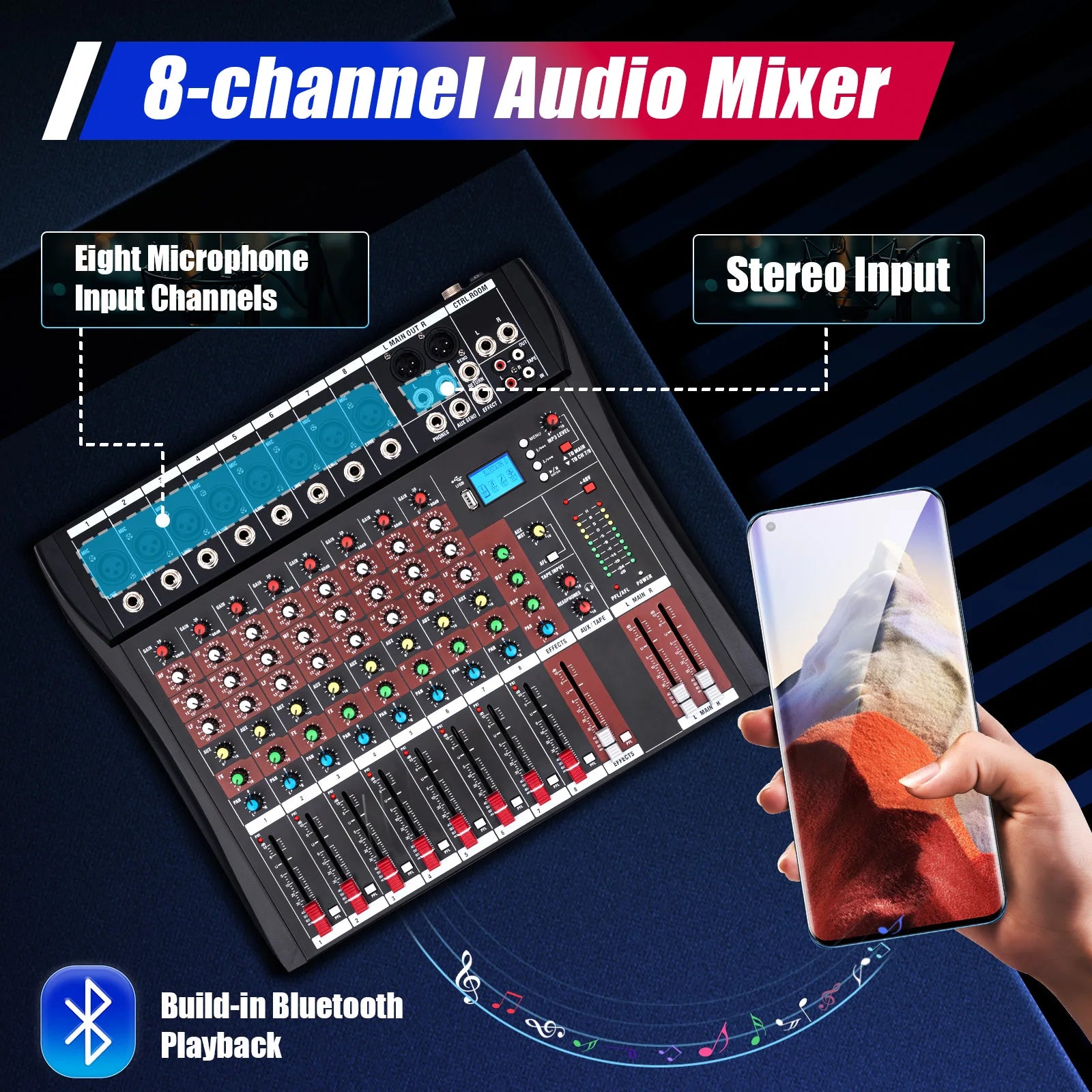

Connection Technology: USB, Bluetooth
Input: AC 230V 50HZ 18W
Output: AC18V*2 350mA
Maximum Input Level of the Microphone: + 24dBu
Maximum Input Level of the Line: + 24dBu
Maximum Output Level: XLR Card + 26dBu
Main Level Meter: 10-segment LED, -24 dB to CLIP
Frequency Response: 20Hz-30Khz ± 0.5dB
Maximum Input Power: 18W
Total Chopping Distortion (RHD + N): <0.01%.
Crosstalk (1 kHz): Fader off> 85 dB Channel> 82 dB
Noise (22Hz-22KHz): Equivalent Input Noise -122dBu Remaining Output Noise <-90dBu

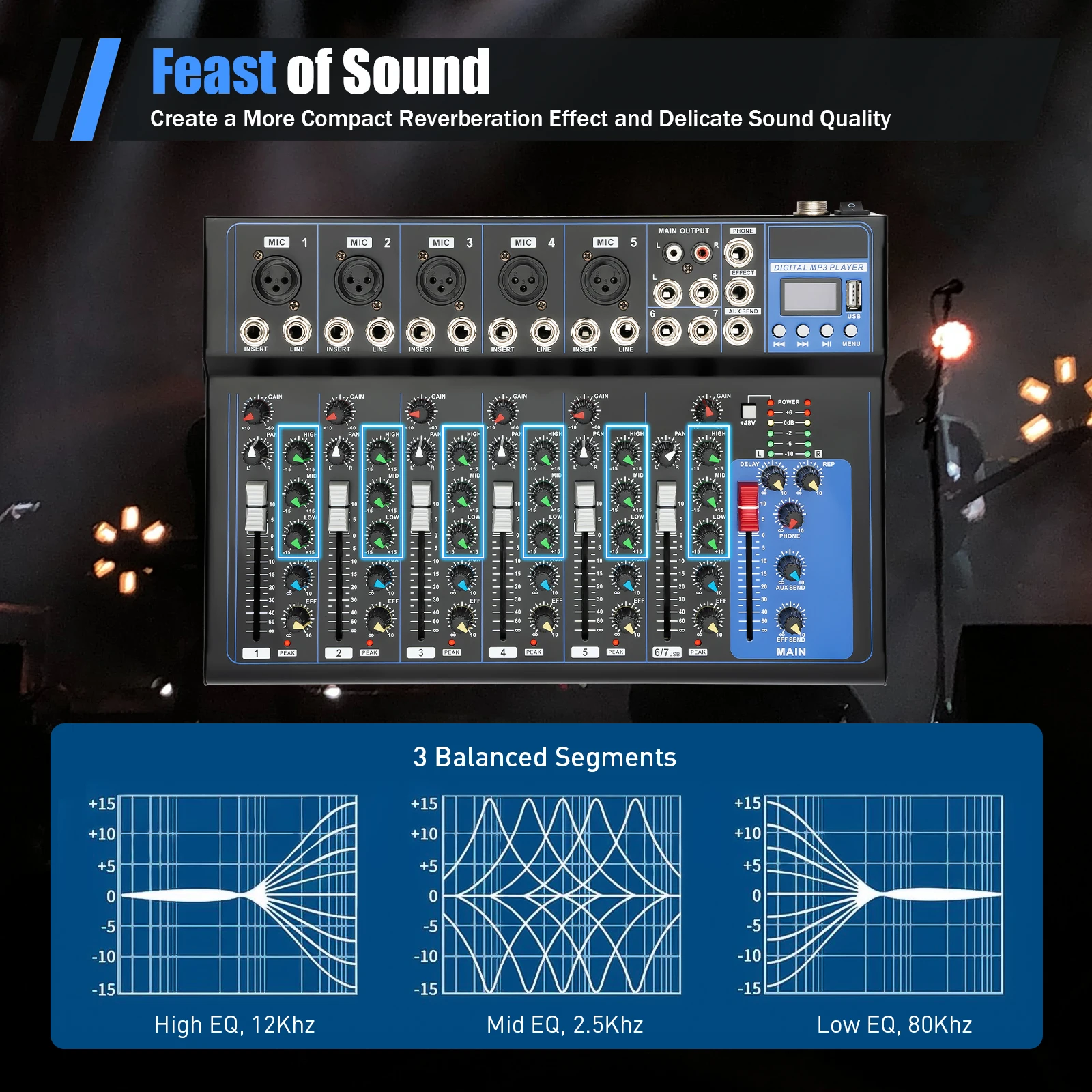

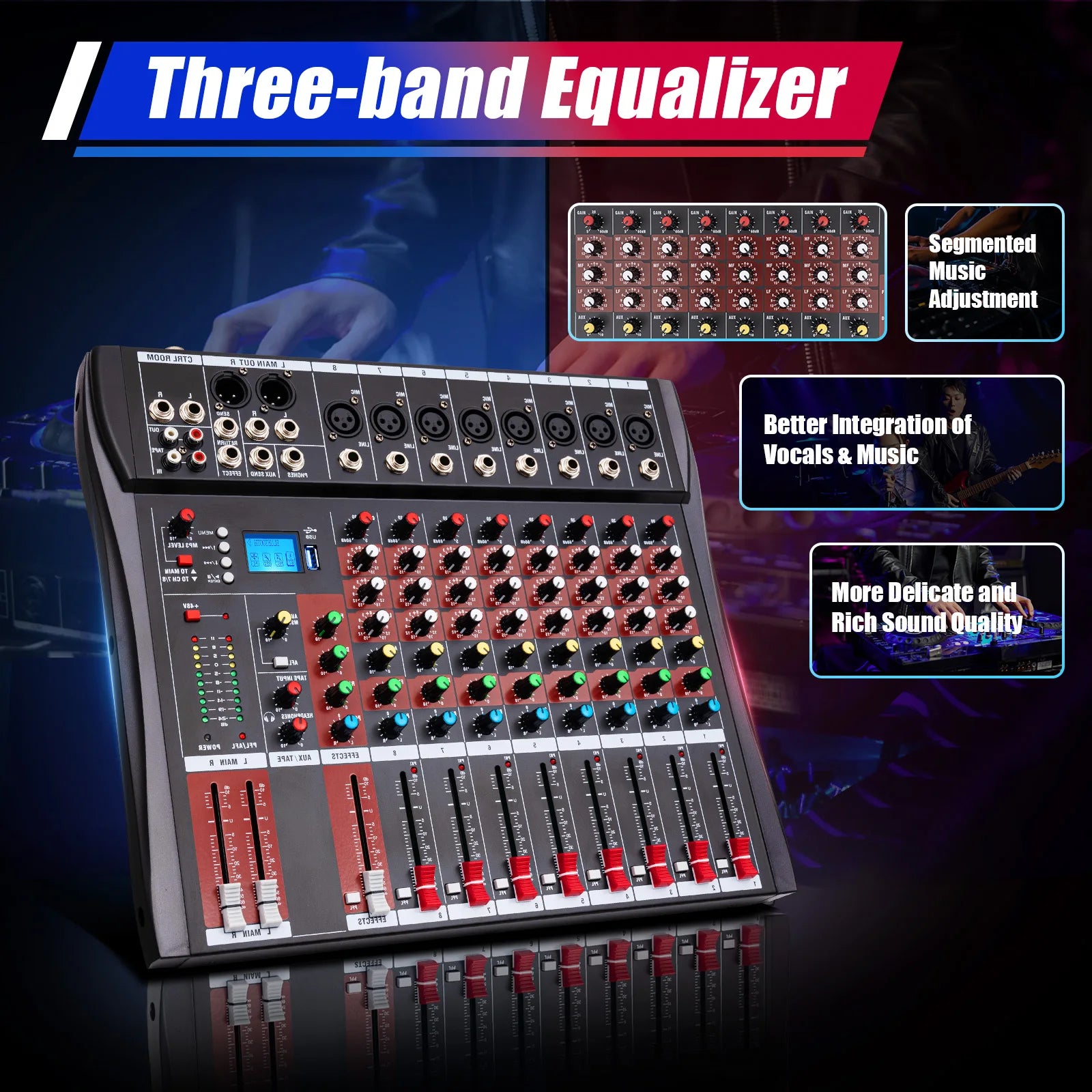

Mono / Stereo Channel EQ: High Frequency +/- 15 dB, 12 kHz Low Frequency +/- 15 dB, 80 kHz High IF +/- 15 dB, 2.5 kHz
Mono: XLR Balanced, 2-pin Hot End, 2Kohm, Sensitivity -60-14dbu TRS Balanced, Tip Hot End, 10Kohm, Sensitivity -40+14dbu XLR Fantasy Power +48V
2-track Return: RCA-seat, Unbalanced, 4K ohms, -2dBu
2-track Gear: RCA-seat, Unbalanced, <75 Ohm, -2dBu
L / R Output: XLR, Balanced, Hot End of the Tip, <75 ohms, + 4 dBu, Max + 22 dBu
FX / AUX Output: TRS, Unbalanced, Hot End of Tip, <75 ohms, -2dBu, max + 18dBu
Headphone: TRS, Tip L, Ring R, Recommended Headphones with 30 to 600 ohms
Bluetooth Wireless Control Range: Max 4.6m/15ft
Package Size: 41*35*5cm/16*13.4*2in

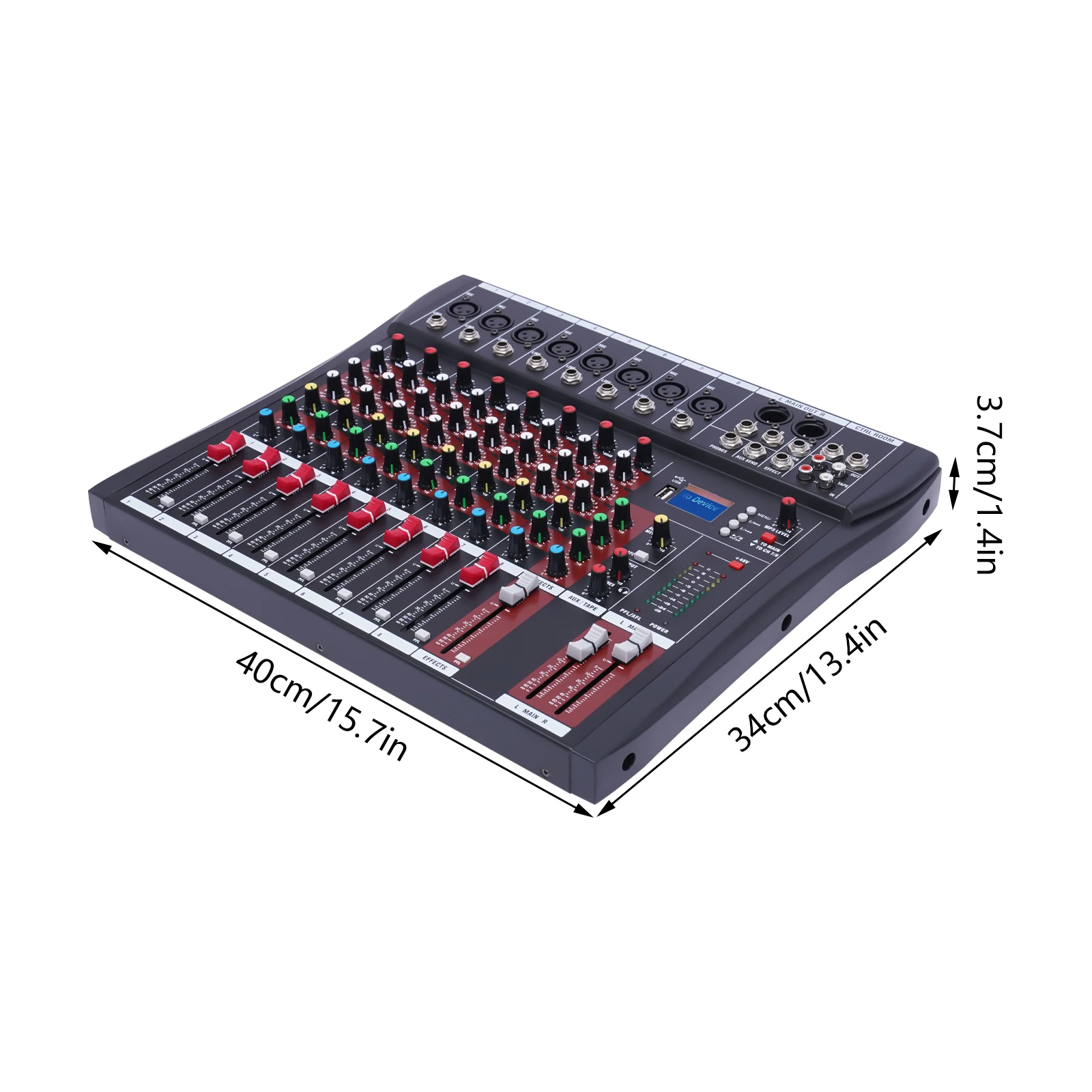

Product Size: 40*3.7*34cm/15.7*1.4*13.4in
Gross Weight: 4.6kg/10lbs
Net Weight: 4.4kg/9.7lbs

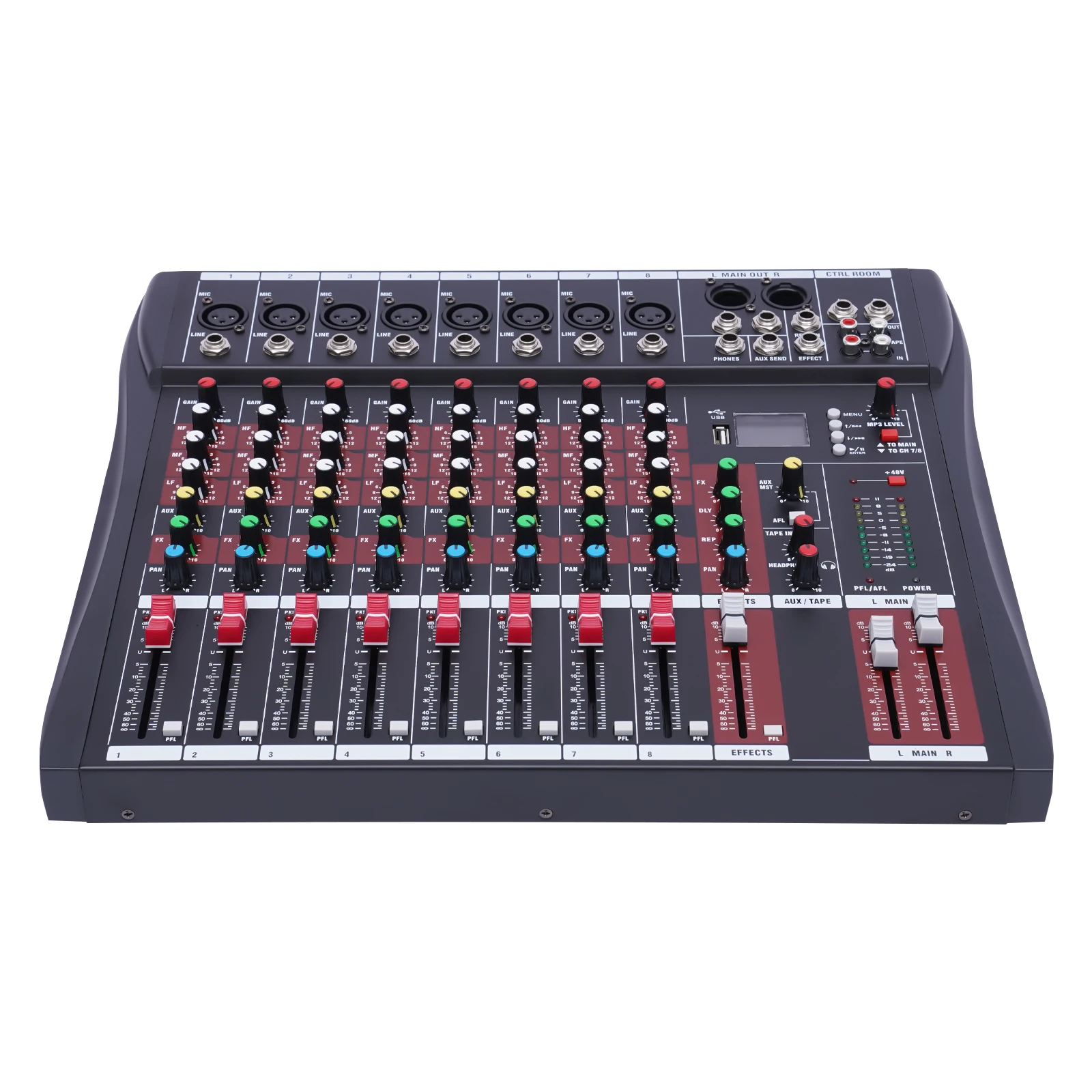

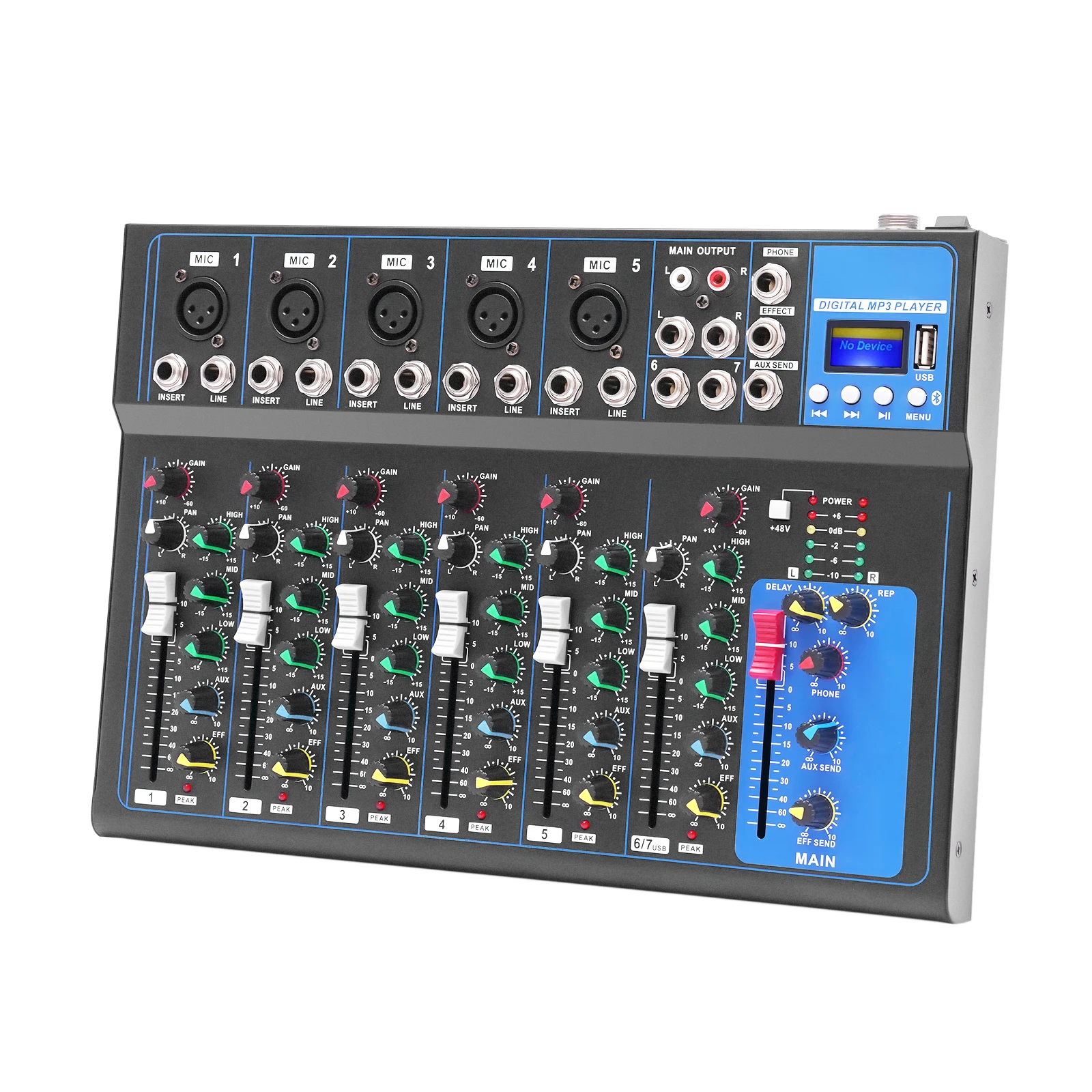

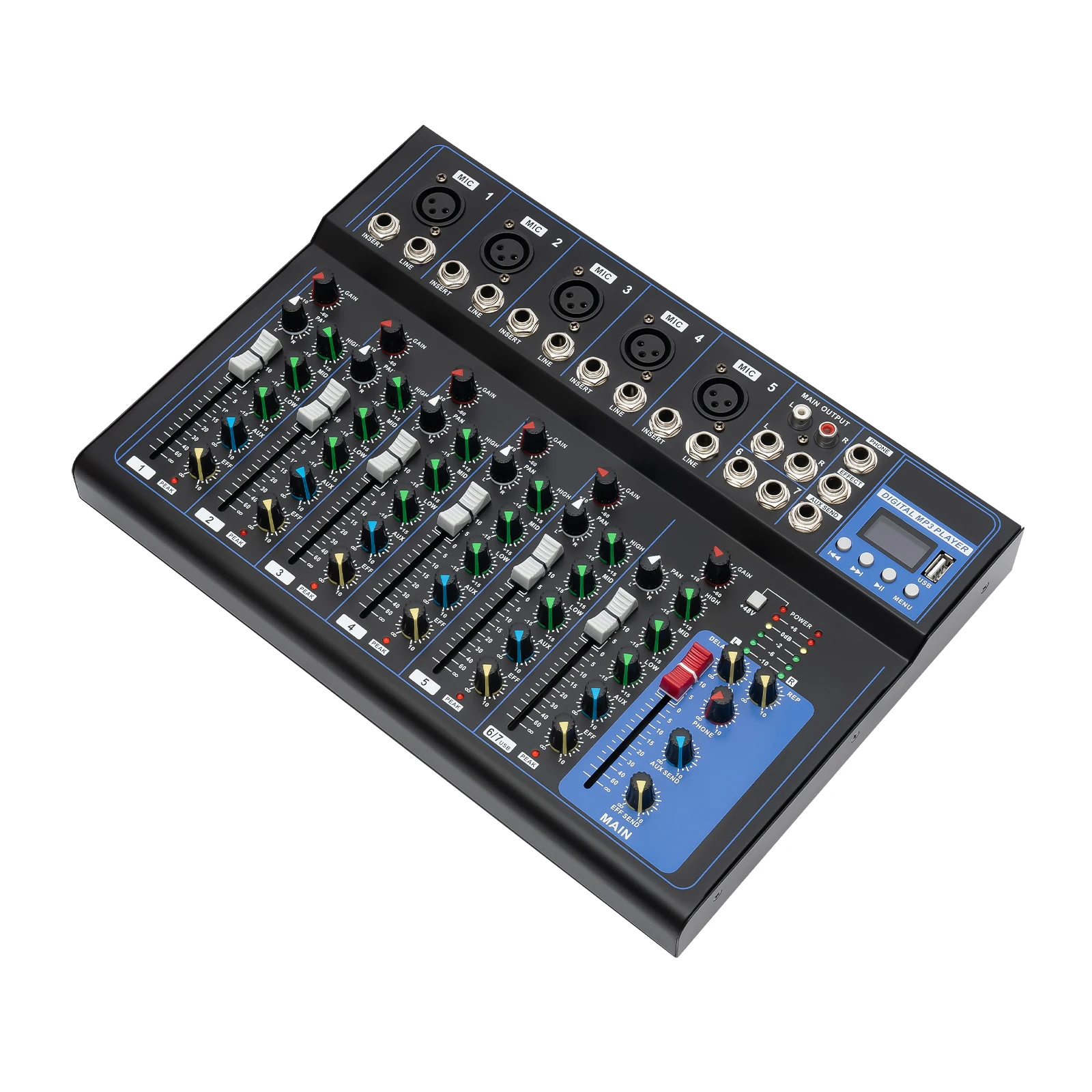

8-Channel US Specification

Color: Black
Material: Metal, Damping
Display: LED

Process: Powder Coating
Number of Channels: 8
Plug: US Standard
Max Input Level: +24dBu(MIC/Line)
Max Output Level: +26dBu(XLR)
Master Meters: 10 Segment -24dB to CLIP
Frequency Response: 20Hz to 30KHz 0.5dB
Max Input Power: 15W
THD+N: ＜0.01%(Channel Input to Mix Output)
Crosstalk at 1kHz: ＞85dB(Fader/Mute Shut Off); ＞82dB(Inter Channel)
Noise (22Hz to 22KHz): Equivalent Input Noise -122dBu, Residual Output Noise <-90dBu
2-track Return: RCA, Unbalanced, 4K ohm, -2dBu
2-track Send: RCA, Unbalanced, ＜75 ohm, -2dBu
L/R Output: XLR Unbalanced, Pin 2 Hot, ＜75 ohm, +4dBu, Max.+22dBu
FX/AUX Output: TRS Unbalanced, Tip Hot, ＜75 ohm, -2dBu, Max.+18dBu
Headphones: TRS, Tip L, Ring R, 30 to 600 ohm Headphones Recommended

Mono Channel:
XLR Balanced, Pin 2 Hot, 2K ohm, Sensitivity -40 to +14dBu
TRS Balanced, Tip Hot, 10K ohm, Sensitivity -20 to +14dBu
XLR, Phantom +48V

Adaptor:
Model: LWV, 16PS
Input: AC 110V 50Hz, 18W
Output: AC 18Vx2, 350mA

Slide Length: 7cm/2.76inch
Gross Weight: 4.65kg/10.25lbs
Net Weight: 4kg/8.82lbs
Package Size: 44.5*42*11cm/17.52*16.54*4.33inch
Product Size: 40*34*5cm/15.75*13.39*1.97inch

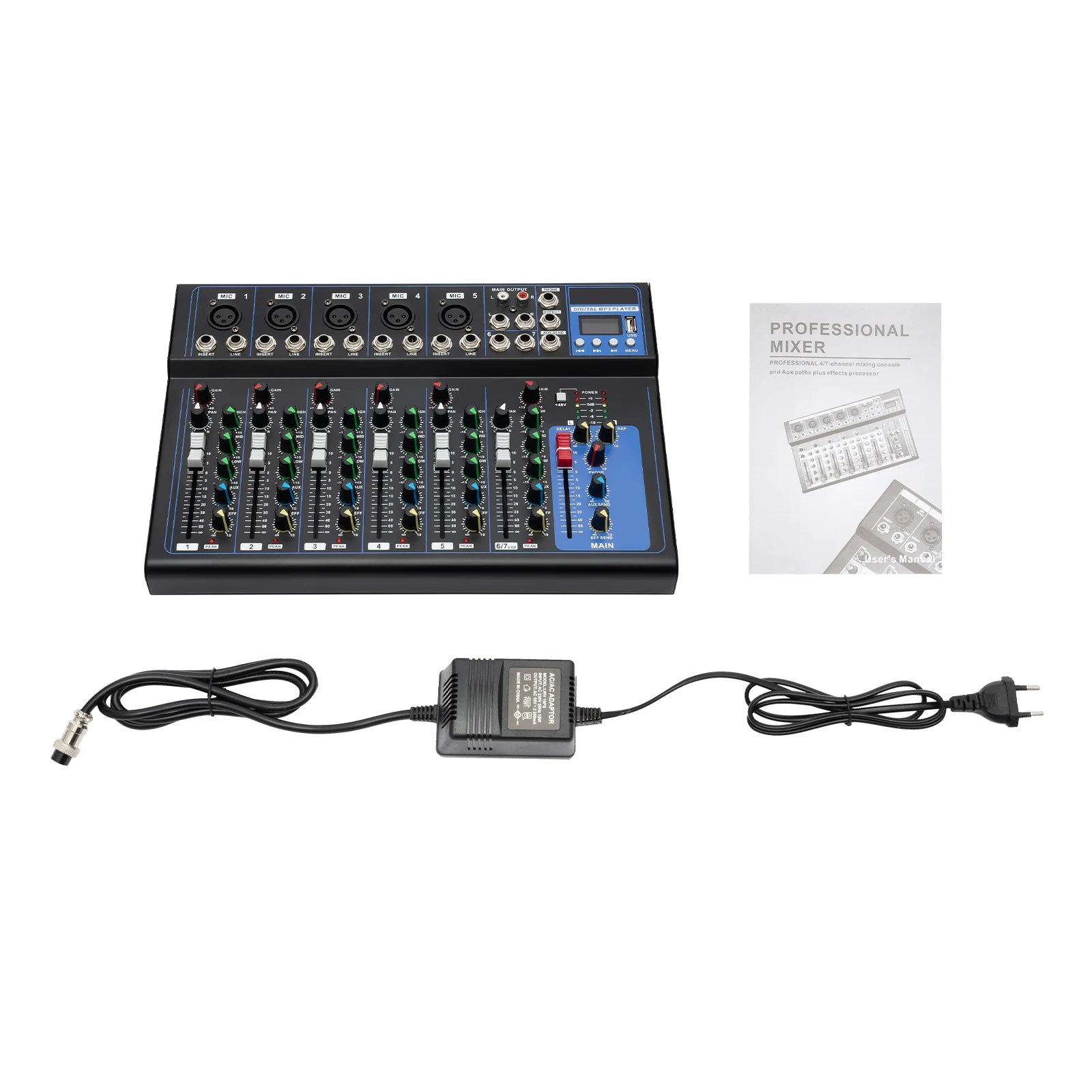

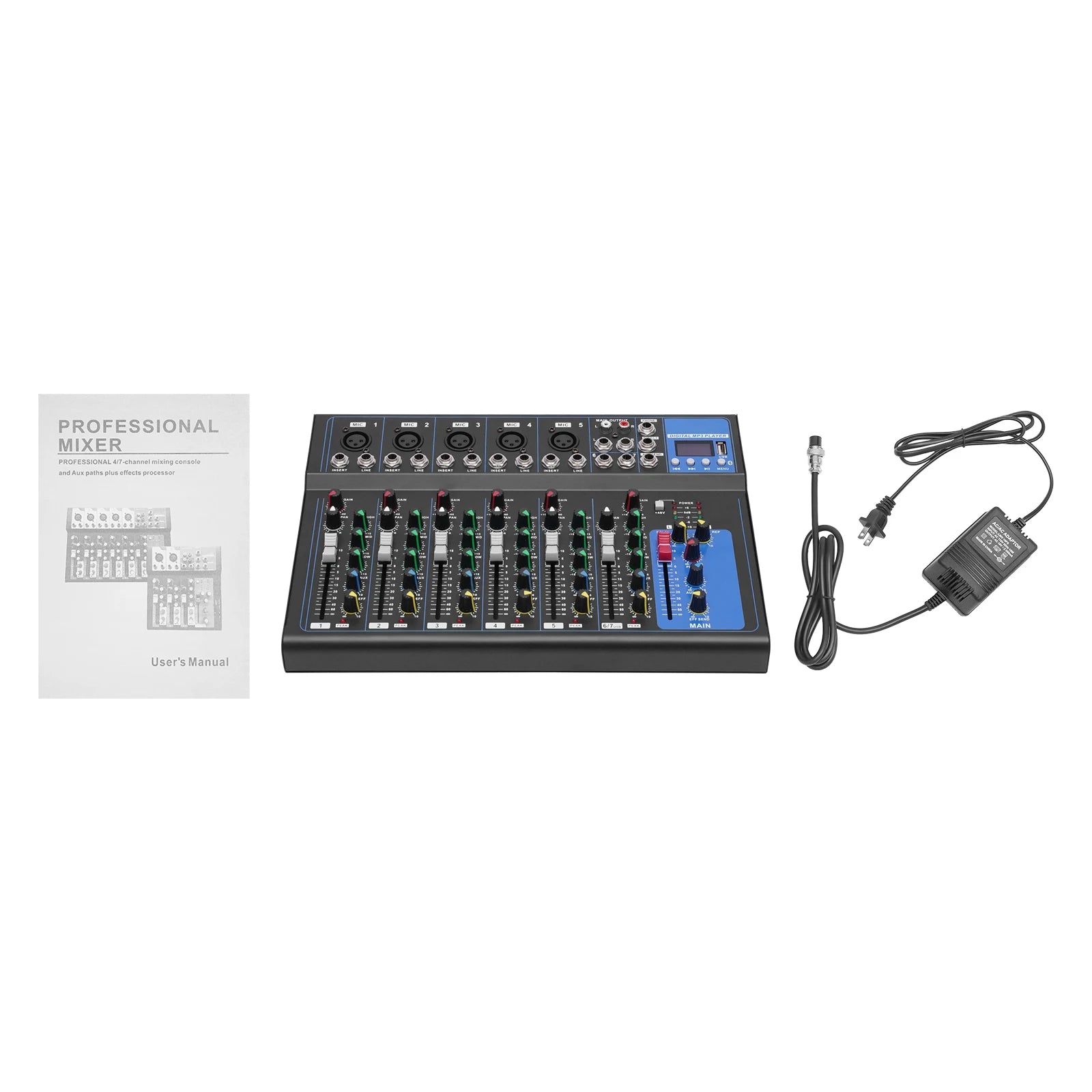

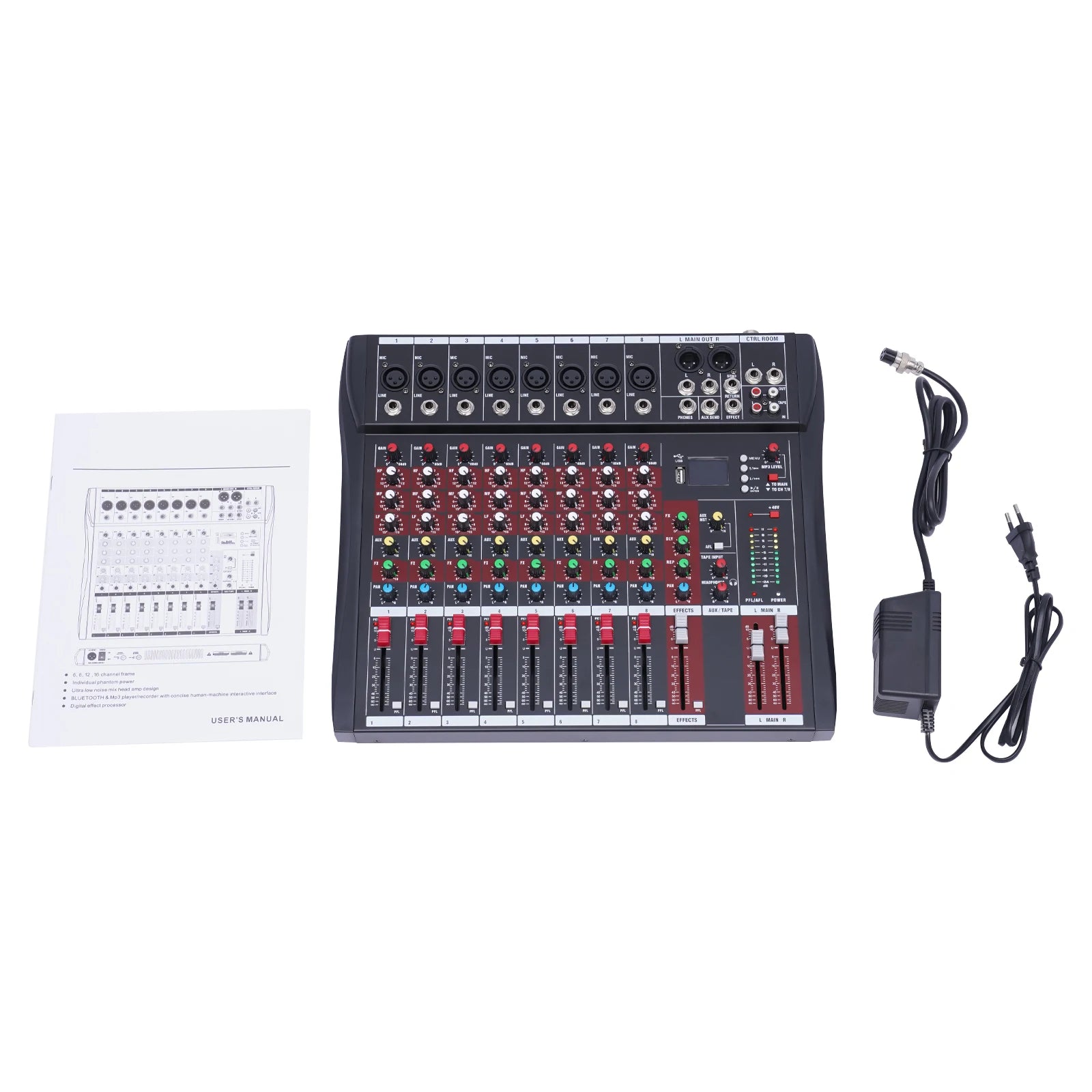

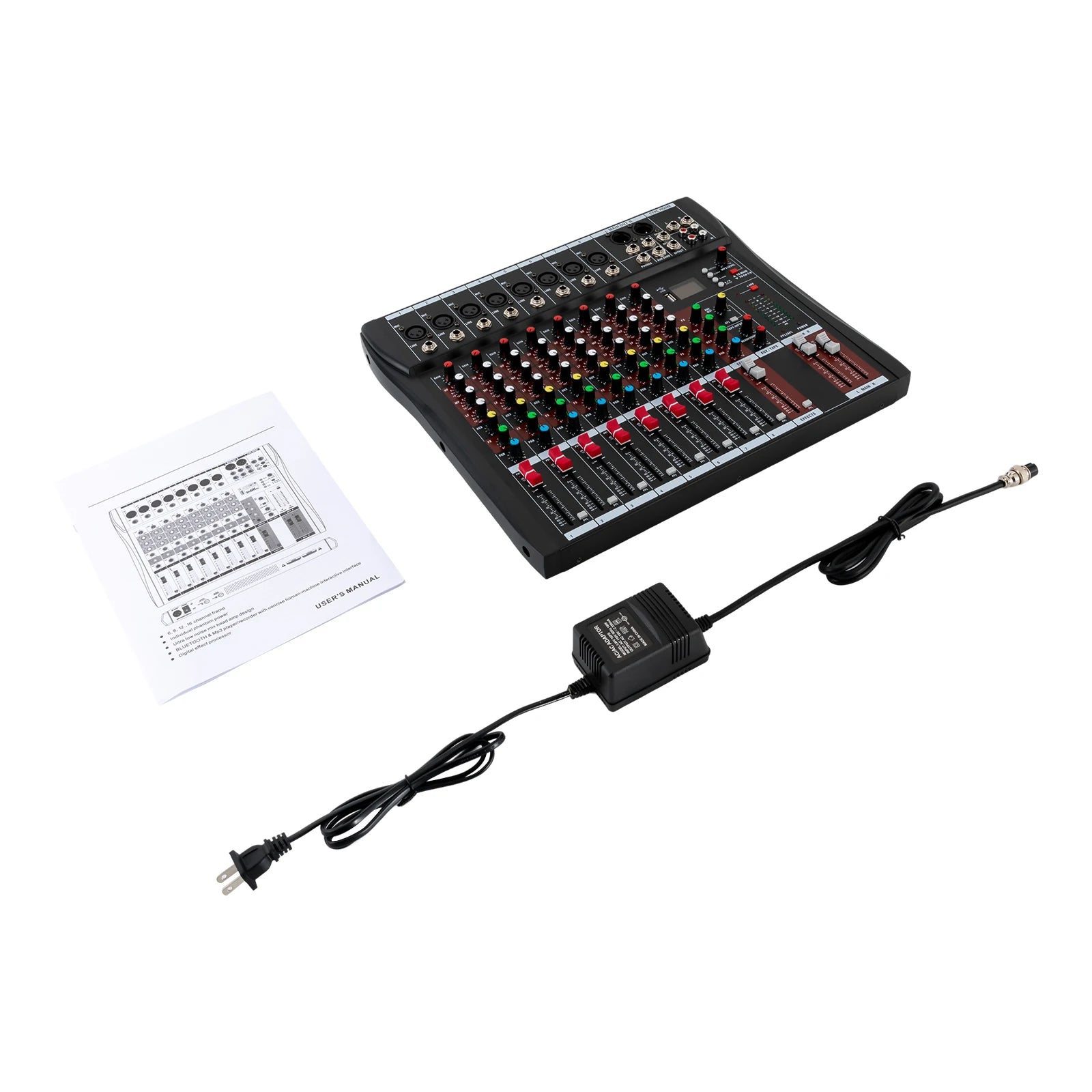

Package Included

1*8-Channel Audio Mixer
1*Power Adapter
1*English Manual
